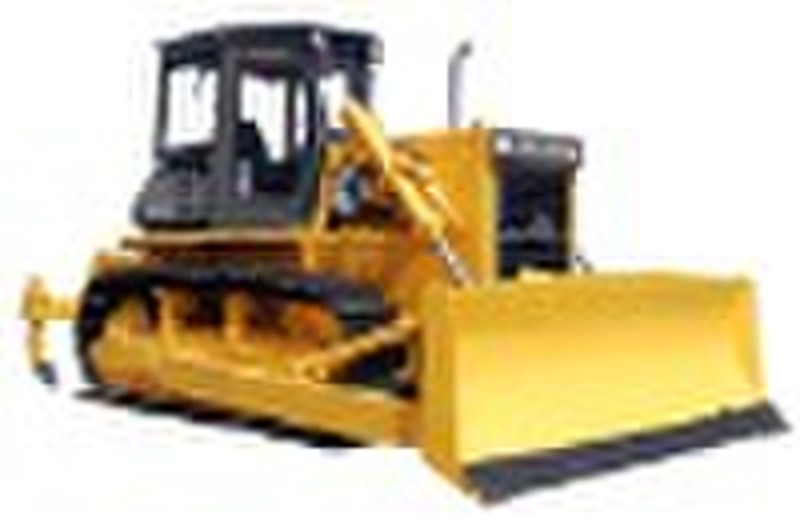

bulldozer

INTRODUCTION: Styre engine WD615-T1-3A, high mobility, reliable performance, rapid service after sales.Hydraulic mechanical drive systemElectronic supervising system with sound and light alarm, high sensitivity, direct supervisingAutomatic angle and height adjustable driver seat, more humanity operation system, easy to operate New hexagonal driver cab with beautiful profile and wide visual field.It is with good adaptability by equipping with U blade, angular blade, three-teeth scarifier. High strength of drive part and worn part by utilizing military technology and equipment, good flexibility, strong wear resistanceMAIN TECHNICAL DATAS: Performance Parameters Gear 1 2 3 Forward (km/h) 0 3.1 0 5.47 0 9.07 Reverse (km/h) 0 4.03 0 7.12 0 11.81 Overall Dimension L×W×H: 5135×3415×3032 mm Operation Weight: 17400kg Ground length: 2430mm Ground pressure: 0.065MPa Min. ground clearance: 400mm Min. turning radius: 3.1m Track centers: 1880mm Shovel capacity: 3.9m3 Max. raising height of blade: 1095mm Max. cutting depth of blade: 545mm Productivity (At distance of 30m): 350m3/h Max. gradient: 30° Engine Type: water cooled, Straight line, 4-stroke, dry cylinder liner, direct injection Rated horsepower: 128Kw Rated speed: 1850r/min No. of cylinders-bore×stroke: 6-126mm×130mm Max. output torque: 764N.m/1100-1200r/min Piston displacement: 14.01L Min. fuel consumption: 215g/kW.h Charging generator: rectifying pressure adjustable type 28V 27A Start method: Start motor 24V 5.4kW Bettary: 12V 200Ah×2 Transmission Hydraulic torque converter: Single-stage single-phase, three element Gearbox: Planetary gear, multi-disc clutch, hydraulic forced lubrication Central transmission: Spiral bevel gear, single stage gear reduction, spattering lubrication Steering clutch: wet type, multi-disc, spring compression, hand fuel pressure booster Steering brake: wet type, foot pedal fuel pressure booster, with stopping brake Final drive: Two-stage spur reduction, spattering lubrication Running Gear Type: Swing type balance bean suspension structure Type of track: Single-row combined Tooth depth: 60mm No. of track shoe: 37×2 Width of track shoe: 510,560,610mm Track pitch: 203mm No. of support rollers: 2pieces/each side No. of road wheels: 7pieces/each side Hydraulic System Type of cylinder: Gear pump PAL.112 Type of cylinder: Dual action piston Max. operation pressure: 14MPa Blade elevating cylinder bore×number: φ110mm×2 Tilt cylinder bore×number: φ160mm×1 Ripper cylinder bore×number: φ160mm×1 Gear-shifting: parallel valve type Dozer Blade Width: 3415mm Height: 1150 mm Cutting angle: Max 56° Min 54° max. inclination height: 860 mm Max. lifting height: 1095 mm max. digging depth: 545 mm lifting speed: 1.5 m/s natural down level: 0-100 mm/15min Electronic Supervising System Fuel temperature, fuel level, charging level and motor hour of engine fuel pressure , water temperature and hydraulic system could be supervised, light and sound alarm will be adopted in alarm system.
